forster fuego light

Back to list

Forster fuego light is the reliable profile system for fire protection.

The flush doors are constructed around a narrow steel frame with a large glass area that guarantees maximum transparency, a sleek appearance and reliable security. In addition to fire doors and glazed fire screens other available systems are tested like fire protection sliding doors, with and without escape route function, doors with finger guard and flush reverse sheet metal frame doors. Thus, the system offers a wide range of applications and therefore a high degree of design freedom.

A wide range of tested and approved hardware leaves nothing to be desired. Be it with the door automation or aesthetically with concealed hinges and door closers.


Smoke protection doors (forster presto), fire-resistant curtain walls (forster thermfix vario) or thermally insulated doors and windows (forster unico) can be optimally combined thanks to the identical appearance.

  • applications
  • system overview
applications
Doors Screens
swing door sliding door  finger protection sheet
metal door		 wooden
panel		 wooden
door leaf 		 glazing glass-butt-joint
steel
fire protection EI30 •  •  •  •  •  •  •  •
fire protection EI60 •  •  •
fire protection EI90 •  •
fire protection EI120 •
fire-smoke protection E30 Sm •
fire-protection EI30 with RC2, RC3 •  •
stainless steel
fire protection Ei30 •  •





system overview
EI30: fire-resistant door | flush mounted sheet metal door | sliding door
EI30: fire-resistant door | flush mounted sheet metal door | sliding door
EI30: fire-resistant and burglary-resistant door | anti-finger trap door | door in all-glass design
EI30: fire-resistant and burglary-resistant door | anti-finger trap door | door in all-glass design
EI30: fire-resistant glazing glass-to-glass with 4 mm joint | door with wooden panel | door with wooden door leaf
EI30: fire-resistant glazing glass-to-glass with 4 mm joint | door with wooden panel | door with wooden door leaf
EI60, EI90: fire-resistant door and glazing | EI120 glazing
EI60, EI90: fire-resistant door and glazing | EI120 glazing
System overview EI30 forster fuego light
System overview EI30
System overview EI60 - EI120 forster fuego light
System overview EI60 - EI120
references

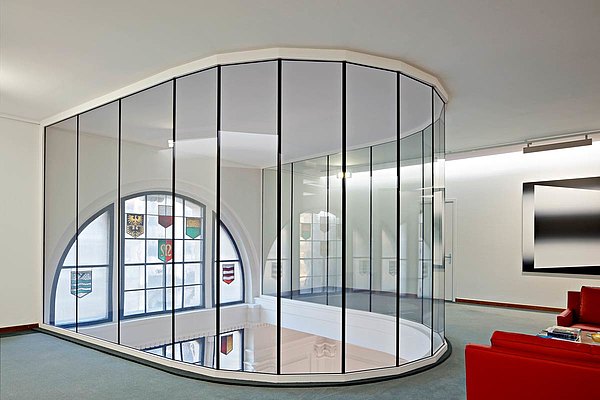

Fire-resistant glazing EI30 glass-to-glass joint, arranged in a semicircle, profile system forster fuego light Bank Cantonale Vaudoise, Lausanne

Fire-resistant glazing EI30 with glass-to-glass joint, arranged in a semicircle.

Lausanne, Schweiz

forster fuego light

Fire-resistant anti-finger trap door

Fire-resistant finger protection door EI30

Winterthur, Schweiz

forster fuego light

curtain wall in transom-mullion construction and fire-rated doors EI30, forster thermfix vario and forster fuego light Indoor swimming pool Les Argoulets, Toulouse

Thermally insulated transom-mullion facade and fire-resistant doors and screens EI30.

Toulouse, Frankreich

forster fuego light (doors)

forster thermfix vario (screens, facades)

Fire-resistant doors and screens EI30 and EI60 in steel. System: forster fuego light and forster thermfix vario RBZ Passage, Hotel Hilton, Vienna

Fire-resistant doors and screens EI30 and EI60

Vienna, Österreich

forster fuego light (doors)

forster thermfix vario (screens)

Fire-rated glazed doors and screens in steel. The used profile systems are forster fuego light for the doors and forster thermfix vario for the screens. Railway station Altona, Germany

Fire-resistant doors and screens EI30

Hamburg, Deutschland

forster fuego light (door)

forster thermfix vario (screen)

Fire-rated screens EI30 and EI60 as butt joint glazing. System: forster fuego light Industrial and commercial building Schützenwiese, Switzerland

Doors and glazings for fire-protection EI30 and EI60. Glazings with 4 mm glass-to-glass joint, doors in steel-glass combination or flush mounted sheet metal doors EI30.

Kriessern, Schweiz

forster fuego light

fire-rated double leaf sliding door EI30 with screen abutment and escape route function. Used system: forster fuego light Hospital Münsterlingen, Switzerland

Different doors for fire protection EI30. Sliding doors partially with escape route function and doors with wooden door leaf in a steel frame and glazed side screens.

Münsterlingen, Schweiz

forster fuego light

fire-rated door and glazing EI30 and butt-joint glazing in circles EI30. Used profile system: forster fuego light. Secli Weinwelt, Switzerland

Fire-resistant glazings and doors EI30. Glazings partially rounded and with 4 mm glass-to-glass joint.

Buchs, Schweiz

forster fuego light

fire-rated doors T30 and smoke-resistant doors RS in fixed glazing. Systems: forster fuego light and forster presto. Secondary school Bürgerwiese, Dresden

Doors in steel for fire protection T30 and smoke protection doors RS in fixes glazings.

Dresden, Deutschland

Fire-protection: forster fuego light

Smoke protection: forster presto

fire-rated doors T30 and smoke-resistant doors RS with fanlight and side screen. Systems: forster fuego light and forster presto. Administration for roadworks and traffic, Dreden

Fire-resistant doors in steel T30 and smoke-resistant doors with fanlight and side panels.

Dresden, Deutschland

Fire-resistance: forster fuego light

Smoke protection: forster presto
