flush mounted fire-resistant panels EI30
The new EI30 fire doors and glazings have many facing options. The high-quality frame in steel or stainless steel can be filled with flush-mounted panels in a huge variety of styles, offering a wide range of design possibilities. This is true of both the door and the screen abutments. The choice of panels ranges from wood veneers and colourful high-gloss or matt paints all the way up to graphic designs. An elegant or contemporary design? Simply give freedom to your creativity to see where it takes you. If the colour you want isn't available in our range, you can design custom-coloured panels with a priming film.
Thanks to the patented quick-lock mechanism, the wooden panels are quick and easy to mount.
This door and glazing is particularly suited to use in schools, care facilities, museums, offices or event spaces.
|Material options||steel and stainless steel|
panels for doors max. 1100 × 2300 mm
panels for sidelights and fanlights max. 1100 × 2900 mm (W×H),1700 × 1400 mm (W×H)
fire-resistance according to EN 1634-1
sound insulation Rw ≤ 37 dB
Concealed hinges, door closer and carry bar
Forster standard fittings

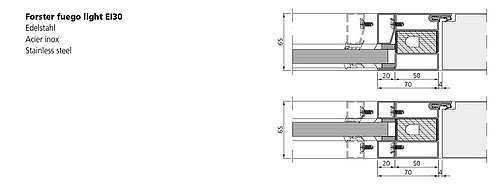

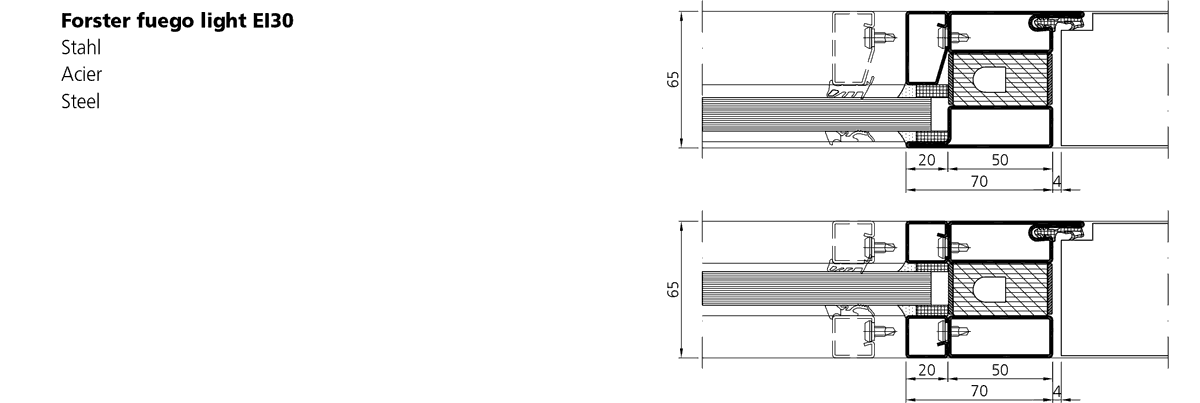

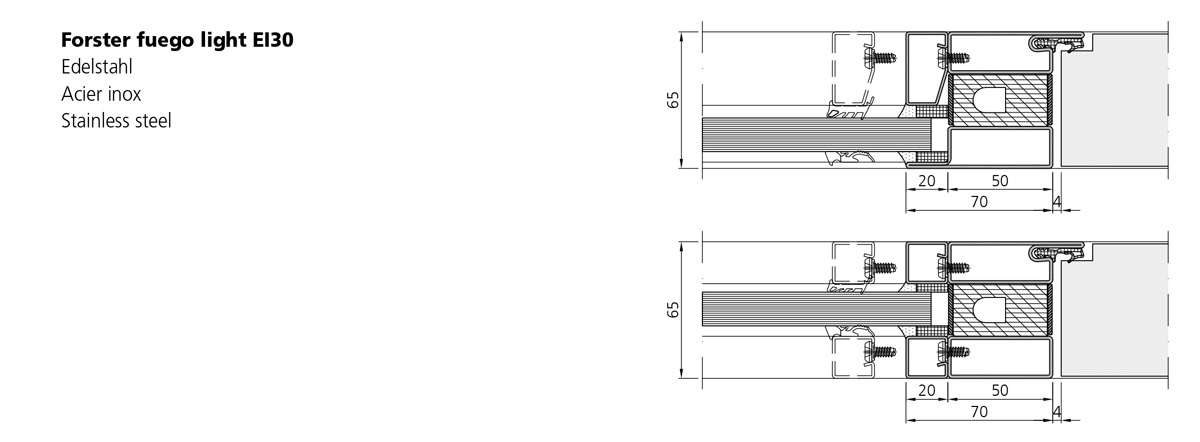

Frame construction depth 65 mm
large selection of colors and materials for door leaf surface
also available with priming film for custom painting
*refer to country-specific approvals
